Relations

5 min read

Relations are behavior-driven links between items. Instead of manually keyframing every movement, you can declare relationships like “this moon orbits that planet” and PinePaper handles the animation automatically.

Relations panel showing linked items
The Relations panel showing items connected by different relation types

Core Relation Types

Relation Description Example Use
orbits Circular motion around target Moon orbiting a planet
follows Moves toward target with smoothing Label following a character
attached_to Moves with target (fixed offset) Hat on a character’s head
maintains_distance Keeps fixed distance from target Electrons around a nucleus
points_at Rotates to face target Arrow pointing at cursor
mirrors Mirrors position across axis Reflection effect
parallax Depth-based movement Background scrolling
bounds_to Stays within defined bounds Ball bouncing in a box

Animation Relations

Relation Description Example Use
grows_from Scales from zero to full size Items appearing in sequence
staggered_with Group animation with stagger Title letters appearing one by one
indicates Temporary highlight pulse Drawing attention to an item
circumscribes Draws shape around target Highlighting a key element
wave_through Wave distortion effect Ripple through a line of items
morphs_to Shape morphing animation Shape transitioning to another
camera_follows View pans to follow target Camera tracking a character
camera_animates Keyframe camera zoom/pan Cinematic zoom sequences

Procedural Animation Relations

These relations create animation without needing a target item:

Relation Description Example Use
driven_by Property follows another property Opacity controlled by position
wiggle Procedural noise motion Jittery, organic movement
time_expression Math expression over time Sine wave oscillation

Adding Relations

From the UI

  1. Select the source item (the one that will move)
  2. Open the Relations section in the Properties panel
  3. Choose a relation type
  4. Select the target item (the one to relate to)
  5. Adjust parameters as needed

Relation Parameters

Each relation type has specific parameters:

orbits:

Parameter Description Default
radius Distance from target 100
speed Rotation speed 0.5
direction clockwise or counter-clockwise clockwise
phase Starting angle (radians) 0

follows:

Parameter Description Default
offset [x, y] offset from target [0, 0]
smoothing Movement smoothing (0-1) 0.1
delay Follow delay in seconds 0

wiggle:

Parameter Description Default
frequency Oscillations per second 2
amplitude Maximum displacement (px) 10
property position, rotation, opacity, scale position
seed Reproducible seed value 0

time_expression:

Parameter Description
property Which property to animate (x, y, rotation, opacity, scale)
expression Math expression using t (time) and v (base value)

Available functions: sin, cos, abs, floor, ceil, sqrt, pow, min, max, clamp, lerp, smoothstep

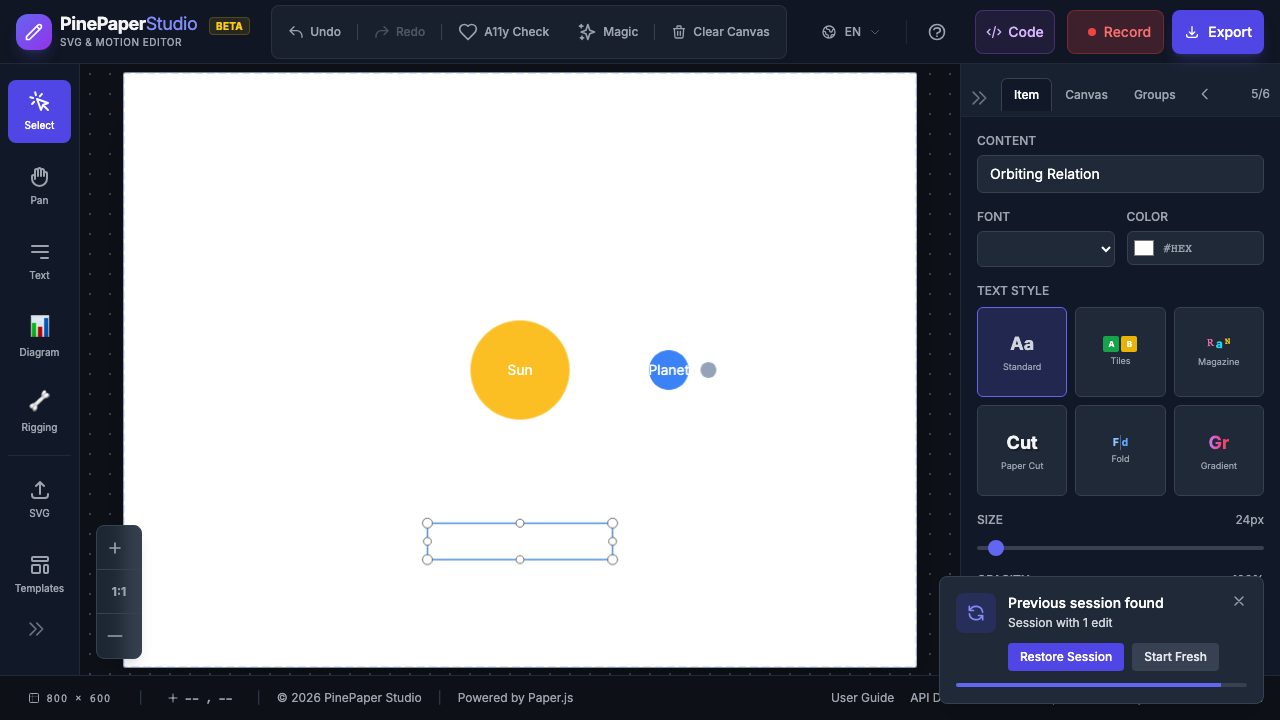

Item orbiting another item
A small circle orbiting a larger one using the "orbits" relation

Time-Scoped Relations

Relations can be active only during a specific time window:

Parameter Description
startTime When the relation activates (seconds)
endTime When the relation deactivates (seconds)
autoRemove Automatically remove after endTime

This lets you create sequences where items change behavior over time - for example, an item orbits for 3 seconds, then follows for 2 seconds.

Camera Animation

The camera_animates relation creates cinematic zoom and pan sequences:

  1. Add the camera_animates relation to create keyframed camera movements
  2. Define zoom levels and center positions at different times
  3. The viewport smoothly animates between keyframes

This is perfect for presentations, tutorials, and cinematic intros where you want to guide the viewer’s attention.

Tips

Composable: Multiple relations can be applied to the same item. They apply in sequence each frame, so you can combine orbits with wiggle for complex organic motion.

  1. Start simple - Begin with follows or attached_to before trying complex setups
  2. Use time-scoping - Create sequences by giving relations different time windows
  3. Combine with keyframes - Relations and keyframe animations can work together
  4. Preview often - Play the timeline to see how relations interact

Related: Animations | Keyframe Editor
