Trim paths let you animate how much of a stroke is visible, creating “draw-on” effects where lines appear to be drawn in real time. This is one of the most popular techniques in motion graphics for revealing text, illustrations, and diagrams.

Path with partial trim visible

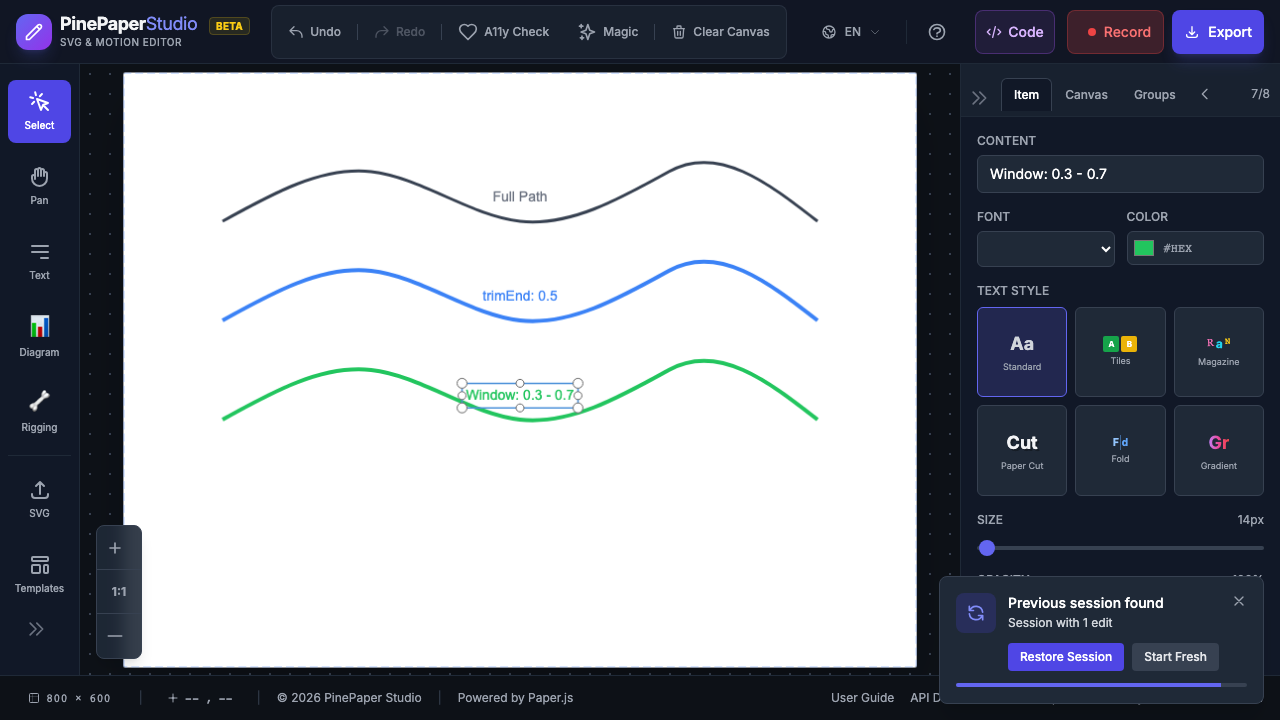

A path with trimEnd set to 0.5, showing only the first half of the stroke

How It Works

Every path has three trim properties:

Property Range Description
trimStart 0 - 1 Where the visible portion begins (0 = path start)
trimEnd 0 - 1 Where the visible portion ends (1 = path end)
trimOffset 0 - 1 Shifts the visible window along the path

When trimStart = 0 and trimEnd = 1, the full path is visible (default). Changing these values reveals or hides portions of the stroke.

Draw-On Effect

The most common use: a stroke that appears to draw itself.

  1. Create a path or shape with a visible stroke
  2. Add keyframe animation:
    • At time 0: trimEnd = 0 (nothing visible)
    • At time 2: trimEnd = 1 (fully drawn)
  3. Play the timeline to see the path draw itself

This works especially well with:

  • Cursive text created with the Cursive Font system
  • Hand-drawn illustrations made with the Drawing tool
  • Diagram connectors for animated flowcharts

Partial Reveal

Show only a portion of a path:

  • Set trimStart = 0.2 and trimEnd = 0.8 to show the middle 60%
  • Animate both values to expand or contract the visible section
  • The hidden portions are completely invisible (not just transparent)

Sliding Window

Create a segment that moves along the path:

  1. Set a fixed window size: trimStart = 0, trimEnd = 0.3
  2. Animate trimOffset from 0 to 1
  3. The visible segment slides along the entire path length

This creates effects like:

  • Loading indicators
  • Scanning/tracing animations
  • Race track or progress line effects

Compatible Items

Trim paths work with:

Item Type Notes
Paths Lines, curves, freehand drawings
Compound Paths Complex shapes with multiple sub-paths
Groups Applies to all paths within the group
Masked Groups Works with items that have masks applied

Tip: For the best draw-on effects with text, use the Cursive Font system. It creates single-stroke text paths that are ideal for trim path animation.

Combining with Other Features

  • Keyframe Editor - Animate trim properties over time with custom easing
  • Relations - Use driven_by to link trim values to other item properties
  • Time Expressions - Use math expressions to create complex trim patterns

Tips

  1. Use easeOut for draw-on effects - it gives a natural deceleration at the end
  2. Keep strokes visible - Trim paths only affect stroked paths, not fills
  3. Check stroke width - Thicker strokes look better for draw-on animations
  4. Stagger multiple paths - Use time offsets to draw paths in sequence
  5. Preview at full speed - Trim animations can feel different at slow vs. normal speed

Related: Keyframe Editor | Font Studio | Animations
